All my building experience is limited to Van's RV's so I have no experience with building tube and fabric or "plans building". I have much to learn so take everything I write with a grain of salt and reasonable skepticisim.
I do not intend to follow a "traditional" path for the construction of #88. I intend to employ low level technology and $ to reduce the construction time and difficulty where possible and practical. By low level technology I am referring to CAD, laser, waterjet, CNC. For example:
- I have purchased a complete wing spar kit from Jerry Kerr.
- A rib kit from Mr. Bartoe.
- Brunton Flying Wires and Drag wires from Harvey Swack.
- CNC profiled tube kits for the fuselage, tail feathers and landing gear from VR3.
In addition I have converted all of the wing fittings, brackets, links, lugs etc. to CAD and had them cut by water jet. I have designed a laser cut wing spar drill template/jig which positions the five spar components so that all of the holes can be drilled in a complete spar as an assembly. I plan to continue converting as many parts as I can to CAD so that I can reduce the "hand-made" components to a minimum.
Note: As of June 2015 I have over 100 CAD files which provide 600+ water jet cut parts for the Skyote.
While it takes a little time, converting the design to CAD is a great way to truly understand the drawings. plus a huge amount of information has been extracted from the rather complex drawings. This can be a great help to others in understanding and interpreting the design.
The Skyote is uniquely suited for conversion to CAD in that a "computer" was used in it's original design. I have read that Mr. Bartoe used a HP calculator to "compute" the design and dimensions of the Skyote. The plans show all of the critical dimensions to three decimal places for X,Y and Z axes.
Amazingly, when I put the design into CAD the resulting 3D models agree with Mr. Bartoe's thee decimal place dimensions about 99.9% of the time. I have found one discrepancy but less than 0.030"!
If you want to build your Skyote as cheaply as possible, or if you enjoy handcrafting the same parts over and over again then my approach to building is not for you!
If you want to build your Skyote in the minimum possible time with highly accurate parts then this approach may be the answer. I personally get a lot of satisfaction out of organizing the project so that it can be produced accurately. Hopefully some of this work will prove useful to others in the future.
Friday, November 7, 2008
This paint table works very well. I tacked up a 10'x2' frame from 2x4's and covered it with 1/2" mesh hardware cloth. It works much better than painting on a flat table top because the air from the spray gun does not reflect back. This eliminates the tendency for parts to be moved by the blast from the gun. It also improves the paint coverage as the paint tends to wrap around the bottom edge of the part.
Tuesday, November 4, 2008

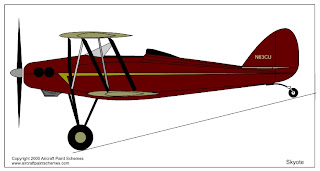

I am working with AircraftPaintSchemes.com so we can have "paint templates" for the Skyote. I sent them three view drawings of the Skyote for conversion to their template format. They emailed the side view template today and promised the top view next week. The above are "quickie" examples . I highly recommed that anyone who is interested go to www.aircraftpaintschemes.com and down load the free software and instructions. Examples are provided for practice and understanding the software.
Hopefully the Skyote templates will be available by sometime next week.
