The posts are presented in reverse chronological order (newest first). Or you can click on one of the "Labels" to see all of the posts concerning a specific topic. Click on any photo for a larger image.
All my building experience is limited to Van's RV's so I have no experience with building tube and fabric or "plans building". I have much to learn so take everything I write with a grain of salt and reasonable skepticisim.
I do not intend to follow a "traditional" path for the construction of #88. I intend to employ low level technology and $ to reduce the construction time and difficulty where possible and practical. By low level technology I am referring to CAD, laser, waterjet, CNC. For example:
- I have purchased a complete wing spar kit from Jerry Kerr.
- A rib kit from Mr. Bartoe.
- Brunton Flying Wires and Drag wires from Harvey Swack.
- CNC profiled tube kits for the fuselage, tail feathers and landing gear from VR3.
In addition I have converted all of the wing fittings, brackets, links, lugs etc. to CAD and had them cut by water jet. I have designed a laser cut wing spar drill template/jig which positions the five spar components so that all of the holes can be drilled in a complete spar as an assembly. I plan to continue converting as many parts as I can to CAD so that I can reduce the "hand-made" components to a minimum.
Note: As of June 2015 I have over 100 CAD files which provide 600+ water jet cut parts for the Skyote.
While it takes a little time, converting the design to CAD is a great way to truly understand the drawings. plus a huge amount of information has been extracted from the rather complex drawings. This can be a great help to others in understanding and interpreting the design.
The Skyote is uniquely suited for conversion to CAD in that a "computer" was used in it's original design. I have read that Mr. Bartoe used a HP calculator to "compute" the design and dimensions of the Skyote. The plans show all of the critical dimensions to three decimal places for X,Y and Z axes.
Amazingly, when I put the design into CAD the resulting 3D models agree with Mr. Bartoe's thee decimal place dimensions about 99.9% of the time. I have found one discrepancy but less than 0.030"!
If you want to build your Skyote as cheaply as possible, or if you enjoy handcrafting the same parts over and over again then my approach to building is not for you!
If you want to build your Skyote in the minimum possible time with highly accurate parts then this approach may be the answer. I personally get a lot of satisfaction out of organizing the project so that it can be produced accurately. Hopefully some of this work will prove useful to others in the future.
Monday, March 19, 2012

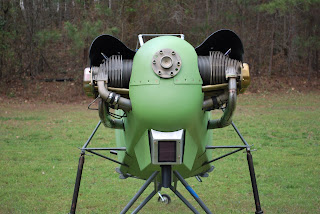

My prop flange is about 2" forward of the original design position in hopes of having a more forward C.G. .
I think I will shorten the engine exhaust and the carb heat exhaust pipes a little and add a 45 degree turn back to the engine exhaust pipe.
Saturday, March 10, 2012
I decided to take Hawkeye's advice relative to a more aft position of the windscreen. Hopefully the cockpit will be relatively quiet. The frame has internal channels to hold three pieces of 1/4 laminated safety glass. There will be a small weight penalty but I have flown behind Lexan and and safety glass before and the glass is so much better! The frame is aliminum and the trailing edge close out trim is Monel.
This is a view of the carb heat box which covers the junction of the left and right pipes with the vertical tail pipe. This should be a good hot spot and generate plenty of carb heat. It is also inside the cowl rather than hanging out in the breeze.
The pipes are just resting on the engine mounts in these photos and are not bolted up to the engine.
I found what appears to be a new O-200 tank. This will replace the one which has been welded around the filler neck. Tanks in good shape are really scarce.
