Thursday, September 13, 2012

Center Section Sheet Metal

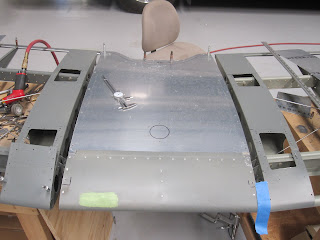

Sometime back the center section was modified to include a handle cut from 1/4" 6061-T6 using water jet.

I decided to replace the original sheet metal tank cover with a new one which would extend back and tie into the handle.

The original plan also included access doors for each of the spar to fuselage fittings plus gap fairings to cover the space between the root rib and the center section. I decided to streamline things by using one-piece fairings to serve as access port covers as well as root gap fairings. There is a very small weight gain (again!!) but not much as the doors and the gap covers are eliminated. I still need to cut out the sheet metal in the center or open area of the handle.

Wood filler blocks were fitted and attached to the root ribs and blended to the contour of the center section around the leading edge and extending under the bottom of the wing. This will leave a very small gap at the nose of the root rib which can be covered with color matched tape. The GlaStar wing root is done this way as well as many gliders.
